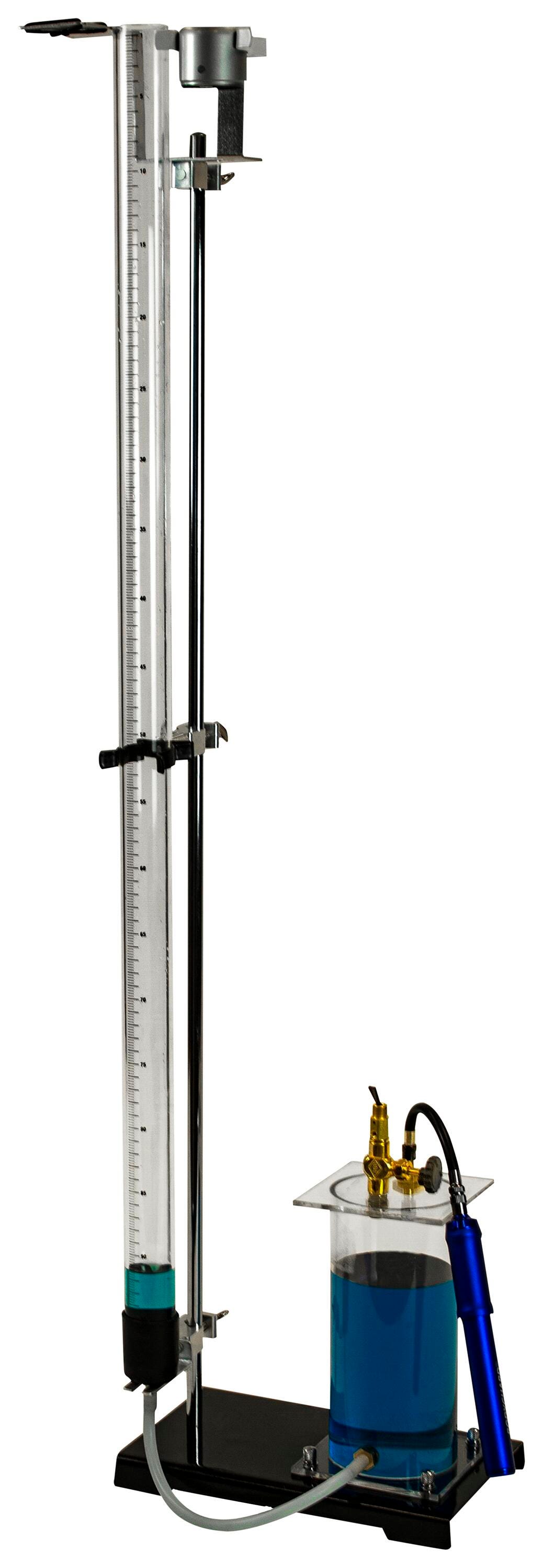

The Acoustic Resonance Apparatus is a thorough re-engineering of a well- known acoustic experiment to improve the precision and scope of the experiment as well as to considerably improve the convenience of its operation.

Select options to add to cart.
Select options to add to list.
About This Item

Description

The traditional apparatus suffers from several limitations. Precise adjustment of the air column length is difficult, the range of adjustment is limited, and the sound source is usually at a fixed frequency and intermittent. The new design addresses all of these shortcomings. In the Acoustic Resonance Apparatus, the length of the air column is adjusted by pumping air into a closed reservoir, forcing water up the vertical resonance tube to the desired height. A flow control and a quick release valve allow air to be released, to adjust the water level with millimeter precision. Sound excitation is provided with adjustable frequency and intensity by an included Bluetooth speaker, driven by a tone generator app on the user’s smartphone. A customer-provided sound sensor mounts on the sensor platform for remote recording of the resonances. Resonances can easily be found by allowing the water level to fall continously from full while recording the sound intensity or by searching out individual resonances manually while observing the sound intensity readout. 95 cm resonance tube with permanent printed scale (85 cm usable length) 35 l reservoir with Schrader valve, hand pump, flow control, and quick release valve Sensor platform with Bluetooth speaker and support for a wide range of sound sensors Support base and rod

Features

  • Explores the acoustic resonances of an enclosed air column
  • Precisely determines resonance points over a wide range of frequencies
  • Determines the velocity of sound at ambient temperature
  • Measures the tube’s end correction for close theoretical comparison
  • Includes:
    • One 95cm Resonance Tube
    • One 35l Reservoir
    • 1 Sensor Platform with Bluetooth Speaker
    • 1 Support Base and Rod
    Shipping Details
    Shipping Type: parcel
    Free Shipping: true
    Specifications
    Maximum Age: 18+
    Maximum Grade Level: Grade 12
    Allergens: Contains No Allergens
    Grade Level: Middle-High School
    Safety: Caution Icon. No Choking Hazard
    SUOM Description: Each
    Brand Name: United Scientific
    Description: Resonance Apparatus
    Material: Metal
