  • United Scientific Air Core Solenoid

United Scientific Air Core Solenoid

Item #: 2093958
$62.79 $47.09
Free Shipping Eligible: Details

School Specialty Shipping Policy

Items Shipped Within the Contiguous 48 United States

Free Shipping Eligible Items

  • Free shipping and handling on eligible supply orders of $49 or more. Free shipping calculation is based on the subtotals of eligible items, after any additional discounts are applied.
  • For subtotals less than $49, the shipping and handling charge is $9.95.

Free Shipping Ineligible Items

  • Shipping and handling charges are 15% of the subtotal of the items, after any discounts are applied, with a $9.95 minimum charge.

Free Shipping Ineligible Items

  • Shipping and handling charges are 15% of the subtotal of the items, after any discounts are applied, with a $99 minimum charge. If the subtotal is greater than $1,000, please e-mail freight_quote@schoolspecialty.com for a freight quote.

*Note: Individually negotiated shipping policies will override the standard shipping policy. See Full Details

Items Shipped to Hawaii, Alaska and International

See our Hawaii & Alaska Shipping Policy and International Shipping Policy for details.
Ships Directly from Manufacturer Typically Within 2-4 Weeks - Lead Times Vary
Add to Cart

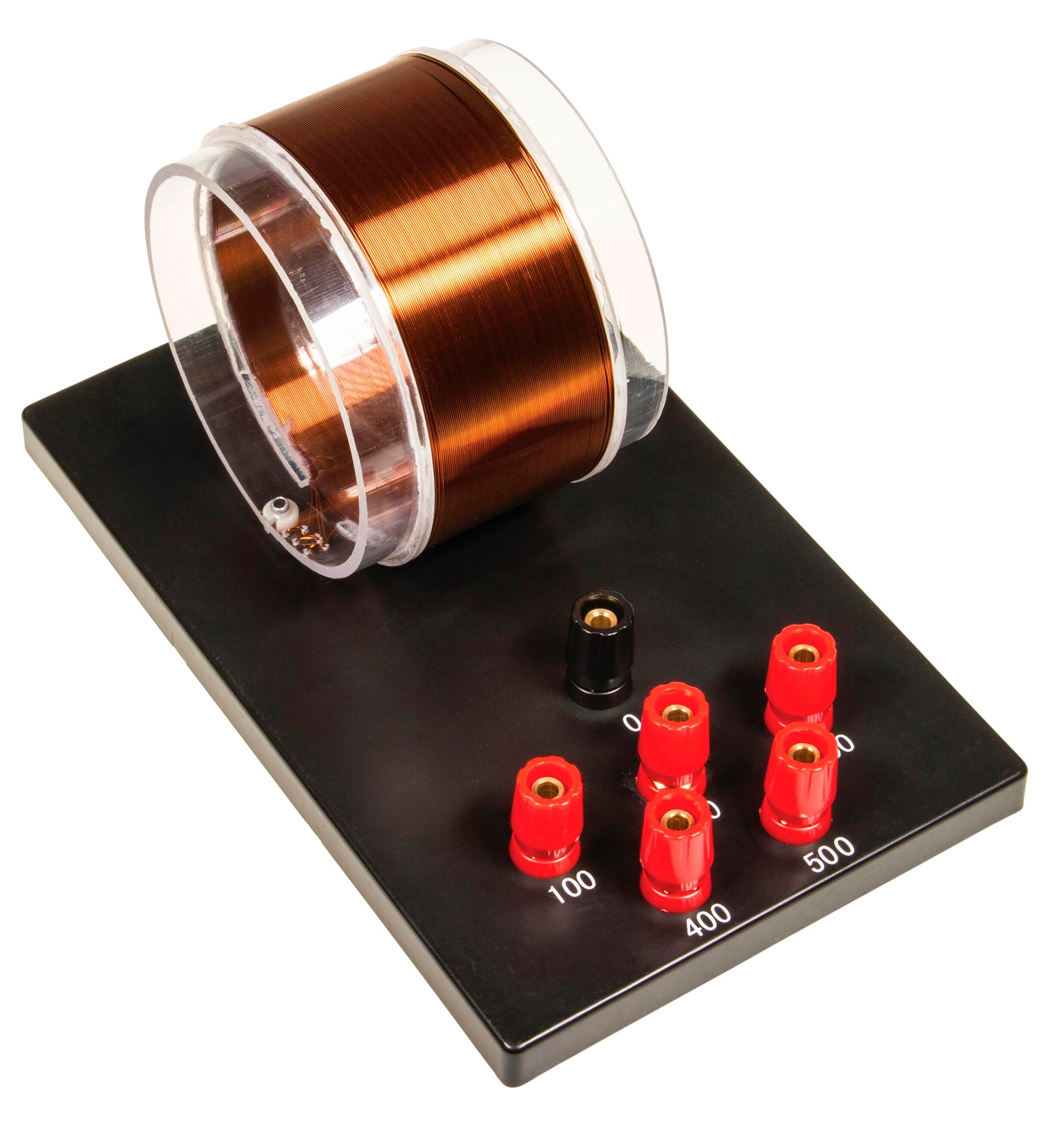

A convenient, well-made solenoid for investigating the magnetic field of a coil and for the current balance experiment. The clear acrylic former and the large diameter (90 millimeters) allow items placed inside the coil to be easily seen.

Five tappings give easy access to windings of 100, 200, 300, 400 and 500 turns by simply moving one plug between the five red binding posts.

The coil has a total resistance of 20 Ω, or 4 Ω per 100 windings and can carry up to 1.5A of current in a single 100-turn segment, allowing a 6VDC power source to be used (and up to 12V for the full 500 turns). Specifications: Coil Diameter: 9.0cm Coil Length: 4.0cm Total turns: 500 Total coil resistance (500 turns): 20 Ω Maximum current: 1.5A (through one segment) Width: 12cm Depth: 20cm Height: 11cm Weight: 360g
